CEFE System

The CEFE system, consisting of a drum and sealed double door lid with filter, is based on the DPTE® system concept. It maintains containment in the cell to which it is connected, it guarantees leak tightness between the cell flange and the drum during docking and it provides leak tightness and prevents contamination during drum docking/undocking on the cell.

It can be entirely dismounted and serviced from inside the cell by means of a remote manipulator arm.

Contact us about CEFE System

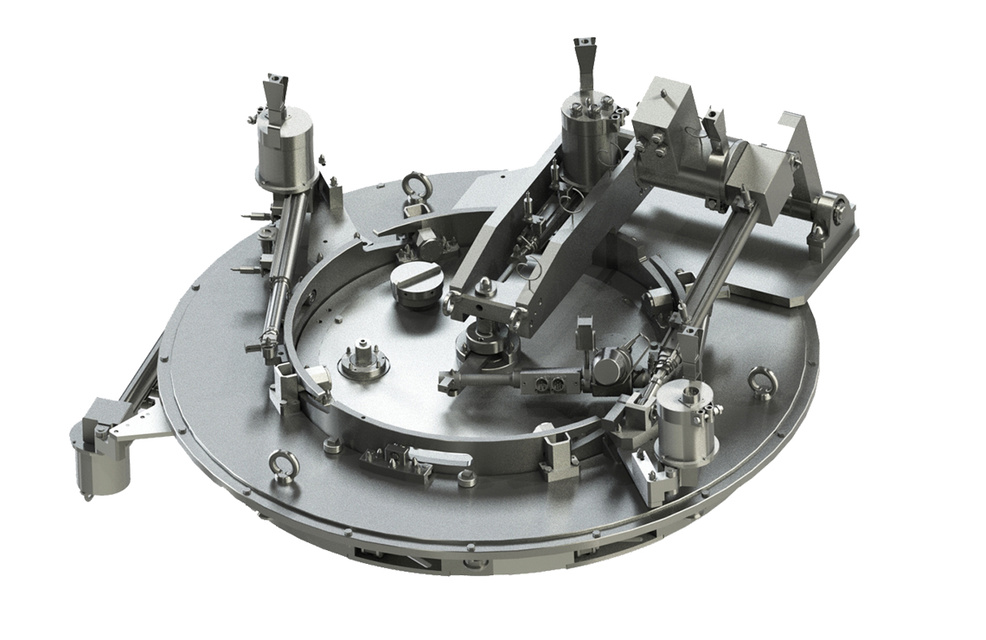

CEFE closed

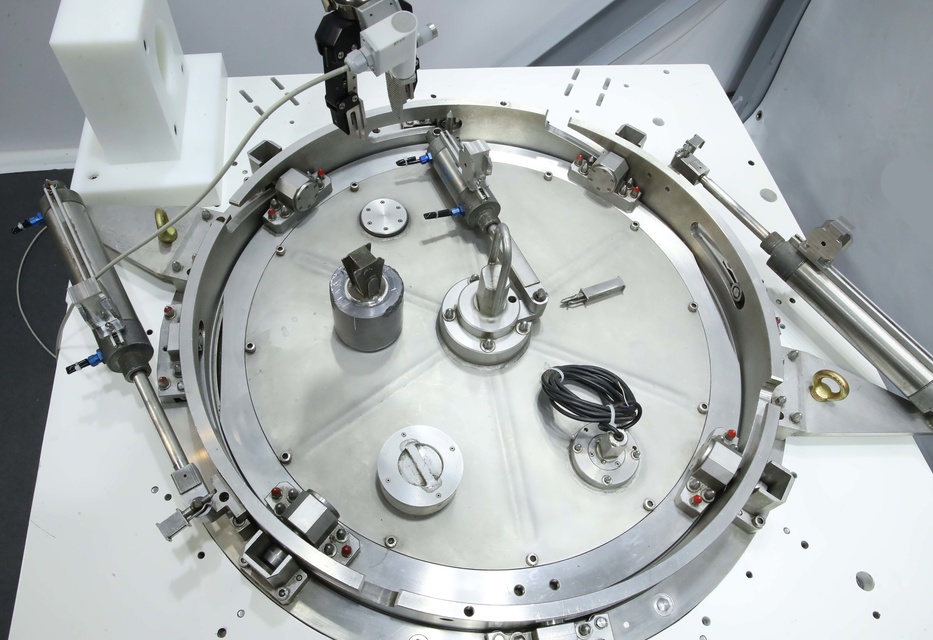

CEFE top view

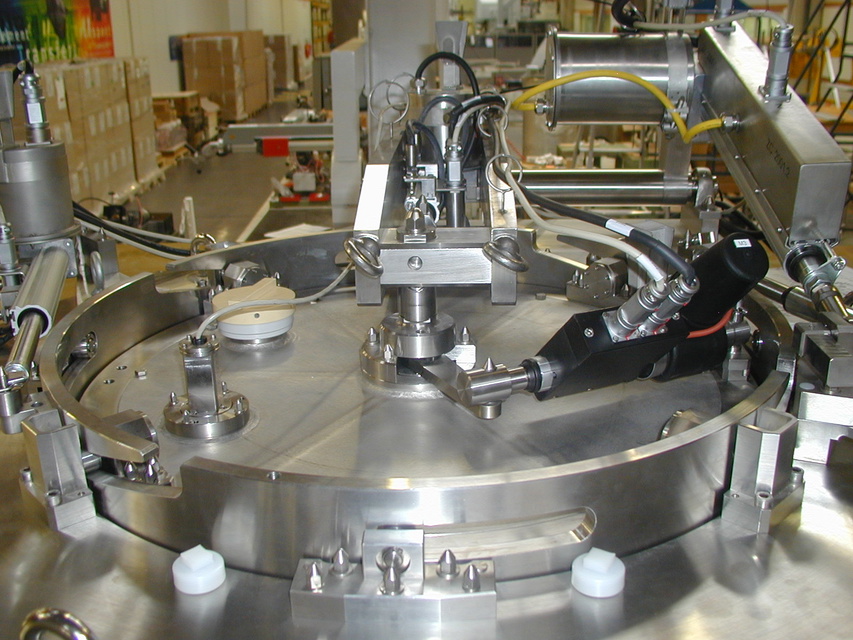

CEFE top view

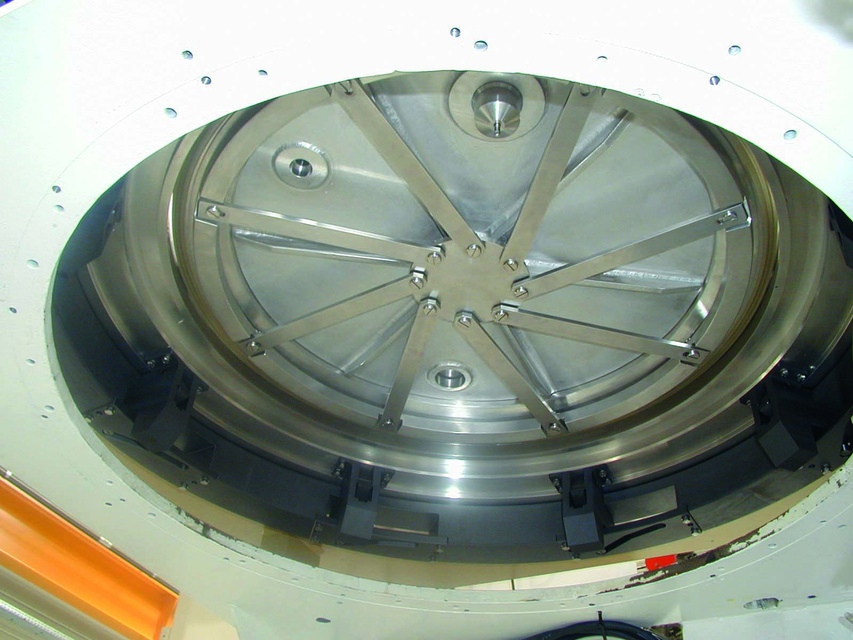

CEFE bottom view

A solution for large volume, wide diameter transfer applications

  • Cell flange (fixed part)
  • Cell door (electric or pneumatic)
  • J3L seal on cell door (leaktight)
  • Locking crown
  • Drum locking option (cell flange)
  • J4L seal on drum (leaktight)
  • Drum lid with filter

The CEFE is available in two sizes: 695 (440 litre drum) and 560 (200 litre or 220 litre drum).

Actuators available on the CEFE system:

CEFE 560 & 695

Actuators
  Pneumatic Electric
Locking Cell Door/ Drum Door Yes Yes
Locking Crown Cell Door Yes Yes

Opening system Cell Door (optional)
Hinge No Yes
Unlocking Cell Door Yes Yes
Drum locking (optional CEFE 695) No Yes
